Fiber optic technology has transformed the way data is transmitted, enabling faster, more secure, and higher-capacity communication systems. While single mode fiber is often the choice for long-distance and high-bandwidth transmissions, multimode fiber remains a practical, cost-effective solution for many short-range and enterprise applications. Its structure, capabilities, and use cases make it a key component in modern network design.

What is Multimode Fiber?

Multimode fiber is an optical fiber designed to carry multiple light modes simultaneously through its core. This is possible due to the larger core diameter, typically 50 or 62.5 microns, compared to the much smaller core of single mode fiber. The cladding, which surrounds the core, is usually 125 microns regardless of mode type.

In multimode fiber, light bounces off the core walls at different angles, allowing several light rays—or modes—to travel through the fiber simultaneously. This results in modal dispersion, a phenomenon where signal quality can degrade over longer distances due to the varying paths taken by each mode.

Types of Multimode Fiber

There are several grades of multimode fiber, classified as OM1, OM2, OM3, OM4, and OM5. Each type supports different transmission distances and data rates:

·       OM1 (62.5/125 µm): Typically supports up to 1 Gbps over 300 meters.

·       OM2 (50/125 µm): Can support 1 Gbps over 600 meters.

·       OM3 (Laser-Optimized 50/125 µm): Supports 10 Gbps up to 300 meters.

·       OM4 (Enhanced OM3): Supports 10 Gbps up to 550 meters and 100 Gbps over shorter distances.

·       OM5 (Wideband Multimode Fiber): Supports shortwave wavelength division multiplexing (SWDM) and is designed for higher bandwidth in data center environments.

Each version builds upon the previous one, enhancing performance and supporting more demanding network environments.

Key Features and Benefits

·       Cost-Effective Solution

·       Multimode transceivers are typically less expensive than their single mode counterparts. Combined with lower installation and maintenance costs for short distances, this makes multimode fiber an economical choice for many network projects.

·       Simplified Light Sources

·       Multimode fiber uses LEDs or vertical-cavity surface-emitting lasers (VCSELs), which are generally more affordable and less complex than the laser sources required for single-mode fiber.

·       Easy Installation and Handling

·       The wider core makes multimode fiber more forgiving during installation and alignment, reducing the chance of signal loss caused by misalignment.

·       Ideal for Short-Distance Transmission

·       While it cannot transmit data over the long distances that single mode can, multimode fiber is more than adequate for most premises, campus, and building networks.

Typical Applications

·       Data Centers: These are used for intra-building links between servers and switches.

·       Enterprise Networks: Ideal for LANs and backbone cabling in office environments.

·       Industrial Networks: With proper jacket protection, multimode fiber supports communication in factories and warehouses.

·       Audio-Visual Systems: Frequently used in digital signage and professional AV installations requiring high bandwidth over shorter distances.

·       Medical Imaging Equipment: Multimode fiber supports fast image transfers in hospitals and diagnostic labs.

Its widespread use stems from its balance of performance and affordability for environments where transmission distances are typically under 600 meters.

Installation Considerations

To ensure the best performance, the following factors should be considered when installing multimode fiber:

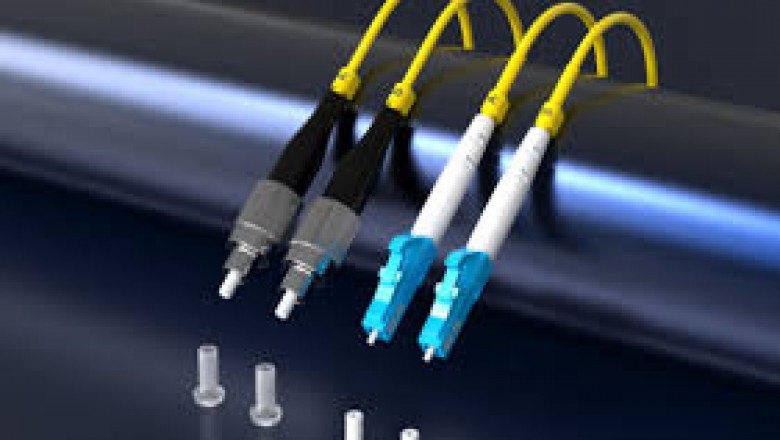

·       Proper Connector Type: Common connectors include LC, SC, and ST. It's important to use matching connectors and maintain correct polarity throughout the system.

·       Cable Jacket Rating: Use plenum-rated cables for air-handling spaces and riser-rated cables for vertical spaces between floors.

·       Bend Radius: Avoid tight bends, as this can cause signal attenuation and potentially damage the fiber.

·       Cleaning and Inspection: Always inspect and clean connectors before mating. Contamination can lead to reflection and signal loss.

·       Use of Quality Patch Panels: Patch panels help organize connections, reduce strain on cables, and simplify future maintenance or upgrades.

Testing and Maintenance

Regular testing is essential to maintain optimal performance. Common tests include:

·       Optical Loss Testing: Measures the amount of signal lost through the fiber and connectors.

·       Endface Inspection: Checks for dirt or damage on connectors.

·       OTDR (Optical Time-Domain Reflectometer): Useful for identifying faults and measuring the length and integrity of the cable.

Preventive maintenance routines should include periodic inspections, documentation updates, and performance checks. Keeping a clean, well-labeled, and organized system reduces downtime and ensures longevity.

Future of Multimode Fiber

With the introduction of OM5 fiber and support for SWDM technology, multimode fiber continues to evolve. While the gap between multimode and single mode transmission distances remains, multimode fiber is being optimized for new high-speed protocols and advanced data center environments. Technologies like parallel optics and modular connectivity systems are further enhancing its value in complex network designs.

Conclusion

Multimode fiber remains a fundamental part of structured cabling systems, especially in environments where cost efficiency, ease of installation, and short-range, high-speed performance are key priorities. By understanding its specifications, applications, and maintenance needs, network designers and installers can build robust systems that meet both current and future demands. Whether for office networks, data centers, or AV systems, multimode fiber offers a dependable and adaptable solution for modern communication infrastructure.
